SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI
Description of the Siemens VFD G120 Product.
SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI

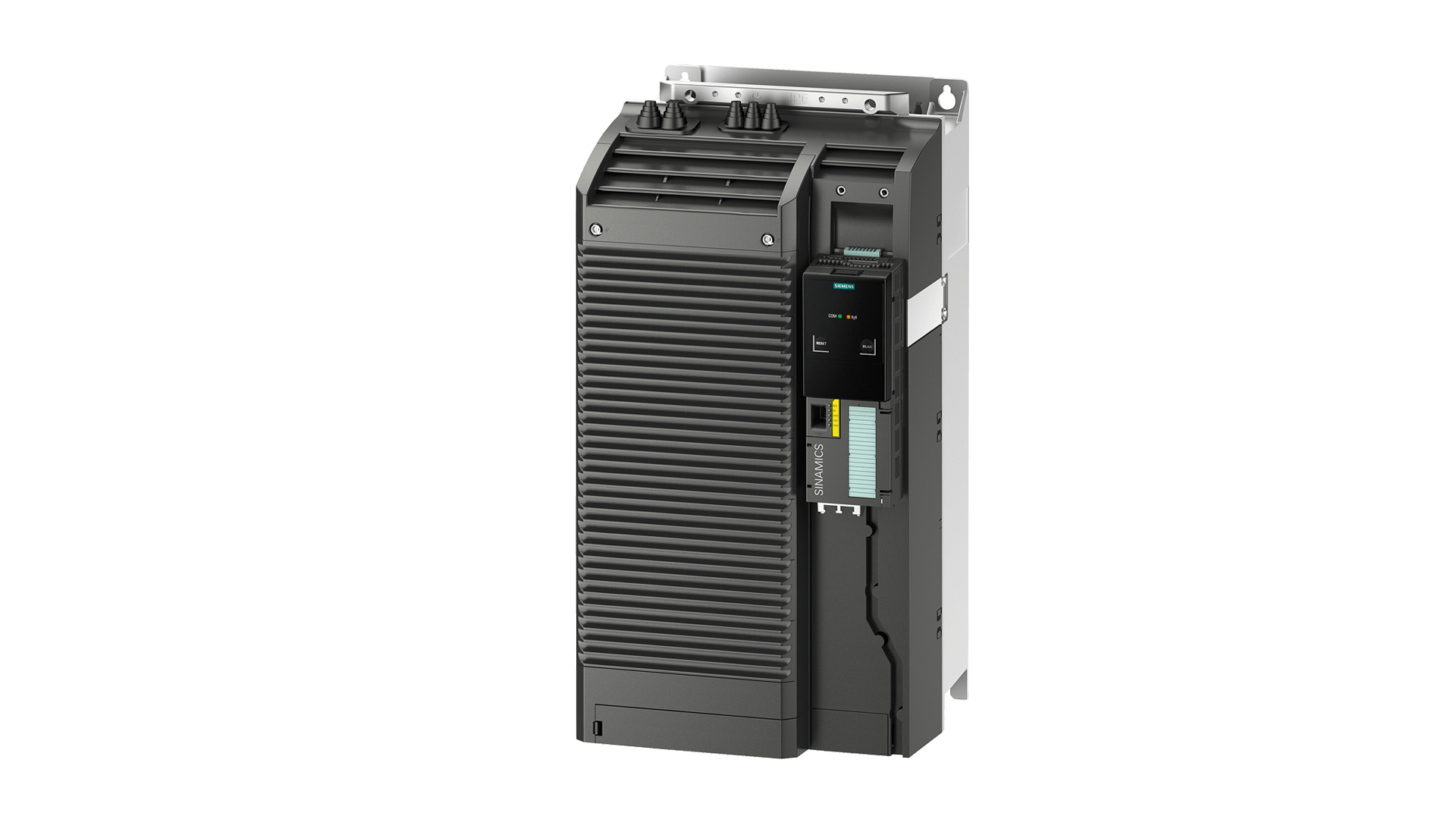

A versatile frequency converter with a wide range of applications is the SINAMICS VFD G120. With the components' wide power range of 0.55 to 250 kW and modular design, you may always assemble the ideal converter for your particular applications and industry. We have experience with a wide range of industries and many projects. Siemens G120 is the dealer, distributor, supplier, vendor, and trader of this product in Jaipur, Kolkata, Rajasthan, and Jamshedpur.
There are three voltage variations in this converter series for use with 200 V, 400 V, and 690 V networks. Accompanying the SINAMICS VFD G120 is a thorough machine safety package. The safety functions are commissioned using SINAMICS Startdrive.
The purpose of the SINAMICS G120 frequency converter is to precisely and economically manage the speed and torque of three-phase motors.
It is appropriate for a wide range of drive solutions with different device versions (frame sizes FSA to FSG) in a power range from 0.37 kW to 250 kW.
Design that is easy to operate
The modular converter system SINAMICS G120 is made up of two main function units:
Unit of Control (CU)
Module of Power (PM)
The Control Unit uses a variety of selectable closed-loop control types to monitor and control the Power Module and the linked motor. It facilitates communication between monitoring equipment and a local or central controller.
The motor receives power from the Power Module between 0.37 and 250 kW. It has pulse-width-modulated motor voltage and variable pulse frequency, showcasing cutting-edge IGBT technology. The Power Module and the motor are highly protected by comprehensive protective mechanisms.
The following Power Modules can be paired with the Control Units:
| Control Units | Power Modules degree of protection IP20 | |
|---|---|---|
| PM240‑2 | PM250 | |
| CU230P‑2 | ✓ | ✓ |
| CU240P‑2 | ✓ | ✓ |
| CU250P‑2 | ✓ | ✓ |
Integrated Safety
For applications pertaining to safety, there are many variants of the SINAMICS G120 standard converters available. For Safety Integrated, the PM240‑2 and PM250 Power Modules are already designed. A Safety Integrated drive can be made by combining a drive with a Control Unit that has safety features (see overview). Depending on the type of Control Unit, different Safety Integrated features may not be available.
| Control Units | Basic Safety functions | Extended Safety functions | ||||
|---|---|---|---|---|---|---|
| STO | SS1 | SBC1) | SLS | SDI | SSM | |
| CU230P‑2 | - | - | - | - | - | - |
| CU240E‑2 | ✓ | - | - | - | - | - |
| CU240E‑2 F | ✓ | ✓ | - | ✓ | ✓ | ✓ 2) |
| CU250S‑2 | ✓ | ✓ | ✓ | ✓ 3) | ✓ 3) | ✓ 3) |
Products Descriptions
| Products No. | Products Description |
|---|---|
| 6SL3210-1PB13-0AL0 | SIEMENS: 200-240 V 1/3AC+10/-10% 47-63Hz SINAMICS Power Module PM240-2 with integrated Class A filter and braking chopper 0.37kW at 200% 3s, 150% 57s, and 100% 240 s is the power high overload; -10 to +50°C ambient temperature; 0.55kW low overload at 150% 3s, 110% 57s, 100% 240S Temperature range: -10 to +40 °C HxWxD = 196x 73x 165, FSA IP20 protection level in the absence of an operating unit and control unit as of CU firmware version V4.6, releasedSIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB13-0UL0 | SIEMENS: 200-240 V 1/3AC+10/-10% 47-63Hz SINAMICS Power Module PM240-2 unfiltered with integrated brake chopper Temperature range: -10 to +50 °C; power low overload: 0.55 kW at 150% 3s, 110% 57s, 100% 240S; power high overload: 0.37 kW at 200% 3s, 150% 57s, 100% 240S Temperature range: -10 to +40 °C HxWxD = 196x 73x 165, FSA IP20 protection level in the absence of an operating unit and control unit as of CU firmware version V4.6, releasedSIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB13-8AL0 | SIEMENS: 200-240 V 1/3AC+10/-10% 47-63Hz SINAMICS Power Module PM240-2 with integrated Class A filter and braking chopper 0.55kW at 200% 3s, 150% 57s, 100% 240 s is the power high overload; -10 to +50°C ambient temperature; 0.75kW mild overload at 150% 3s, 110% 57s, 100% 240S Temperature range: -10 to +40 °C HxWxD = 196x 73x 165, FSA IP20 protection level in the absence of an operating unit and control unit as of CU firmware version V4.6, releasedSIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB13-8UL0 | SIEMENS: 200-240 V 1/3AC+10/-10% 47-63Hz SINAMICS Power Module PM240-2 unfiltered with integrated brake chopper Temperature range: -10 to +50 °C; power low overload: 0.75 kW at 150% 3s, 110% 57s, 100% 240 s; power high overload: 0.55 kW at 200% 3s, 150% 57s, 100% 240 s; Temperature range: -10 to +40 °C HxWxD = 196x 73x 165, FSA IP20 protection level in the absence of an operating unit and control unit as of CU firmware version V4.6, releasedSIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB15-5AL0 | SIEMENS: PM240-2 SINAMICS POWER MODULE WITH BUILT-IN CL. AN INTEGRATED BRAKING CHOPPER IN A FILTER 47–63 Hz 1/3 AC200–240V +10/–10% OUTPUT ELEVATE OVERLOAD: 0.75KW FOR 200% 3S, 150% 57S, 100% 240S OUTPUT AMBIENT TEMP -10 TO +50 DEG C Low overload: 1,1 KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: -10 to +40 degrees Celsius; dimensions: 291 x 100 x 165 (HXWXD); fire safety rating: IP20; panel approved for CU firmware version 4.6; without control unit.SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB15-5UL0 | SIEMENS: SICAMICS POWER MODULE PM240-2 WITH INTEGRATED BRAKING CHOPPER AND NO FILTER Output: 1/3AC200-240V +10/-10% 47-63HZ AMIENT TEMP -10 TO +50 DEG C HIGH OVERLOAD: 0,75KW FOR 200% 3S, 150% 57S, 100% 240S OUTPUT LOW OVERLOAD: 1,1KW FOR AMBIENT TEMP -10 TO +40 DEG C FOR 150% 3S, 110% 57S, AND 100% 240S CU Firmware Version V4.6-approved panel and FSB protection IP20 without control unit measure 291 x 100 x 165 (HXWXD).SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB17-4AL0 | SIEMENS: PM240-2 SINAMICS POWER MODULE WITH BUILT-IN CL. AN INTEGRATED BRAKING CHOPPER IN A FILTER 47–63 Hz 1/3 AC200–240V +10/–10% OUTPUT ELEVATE OVERLOAD: 1,1 KW FOR 200% 3 S, 150% 57 S, 100% 240 S OUTPUT AMBIENT TEMP -10 TO +50 DEG C AMIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE-VERSION V4.6; LOW OVERLOAD: 1,5KW FOR 150% 3S,110% 57S,100% 240SSIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB17-4UL0 | SIEMENS: SICAMICS POWER MODULE PM240-2 WITH INTEGRATED BRAKING CHOPPER AND NO FILTER Output: 1/3AC200-240V +10/-10% 47-63HZ AVAILABLE TEMPS: -10 TO +50 DEG C; HIGH OVERLOAD: 1,1KW FOR 200% 3S, 150% 57S, 100% 240S OUTPUT AMBIENT TEMP -10 TO +40 DEG C LOW OVERLOAD: 1,5KW FOR 150% 3S, 110% 57S, 100% 240S CU Firmware Version V4.6-approved panel and FSB protection IP20 without control unit measure 291 x 100 x 165 (HXWXD).SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB21-0AL0 | SIEMENS: PM240-2 SINAMICS POWER MODULE WITH BUILT-IN CL. AN INTEGRATED BRAKING CHOPPER IN A FILTER 47–63 Hz 1/3 AC200–240V +10/–10% OUTPUT EXTREME OVERLOAD: 1.5KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT CU FIRMWARE VERSION V4.6 APPROVED PANEL AND FSB PROTECTION IP20 WITHOUT CONTROL UNIT, LOW OVERLOAD: 2,2KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP: -10 TO +40 DEG C 291 X 100 X 165 (HXWXD).SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
| 6SL3210-1PB21-0UL0 | SIEMENS: SICAMICS POWER MODULE PM240-2 WITH INTEGRATED BRAKING CHOPPER AND NO FILTER Output: 1/3AC200-240V +10/-10% 47-63HZ AVAILABLE TEMPS: -10 TO +50 DEG C; HIGH OVERLOAD: 1,5KW FOR 200% 3S, 150% 57S, 100% 240S OUTPUT LOW OVERLOAD: 2,2 KW AMBIENT TEMP: -10 TO +40 DEG C FOR 150% 3S, 110% 57S, 100% 240S CU Firmware Version V4.6-approved panel and FSB protection IP20 without control unit measure 291 x 100 x 165 (HXWXD).SIEMENS VFD G120 DISTRIBUTOR IN NEW DELHI |
