Siemens S7-200 SMART PLC: Product Overview
The Siemens SIMATIC S7-200 SMART PLC is a compact programmable logic controller designed for machine automation, OEM equipment and small-to-medium control applications. It combines the PLC CPU, integrated inputs and outputs, communication interfaces and expansion capability within a compact automation platform.
The S7-200 SMART family is useful where a machine requires reliable sequencing, digital I/O control, communication with other automation devices and a straightforward engineering environment. Depending on the selected CPU, users can choose different I/O capacities and output configurations according to the machine architecture.
How S7-200 SMART Controls a Machine
01 Sense
→
02 Process
→
03 Control
→
04 Monitor
Compact Control
Designed for machine-level automation where compact PLC hardware and integrated I/O are important.
Communication
Supports applicable Ethernet and serial communication functions for PLC, HMI and other automation devices.
Expandable Platform
Expansion modules can be added where additional digital, analog or communication capability is required.
Where Is S7-200 SMART Used?
Typical applications include packaging machines, conveyors, material handling systems, pump control, assembly machines, production equipment and OEM automation. The appropriate CPU and modules should be selected according to the required I/O, communication and control functions.
Industrial Process Reference
Conveyor & Material Handling
A typical automated line uses sensors for detection, PLC logic for sequencing and actuators or drives for controlled movement. This shows the real industrial environment behind the process explanation.
What Is S7-200 SMART?
S7-200 SMART is a Siemens compact PLC family developed for machine and industrial automation. It provides the control logic required for sequencing, monitoring, timing, counting and machine-level process control.

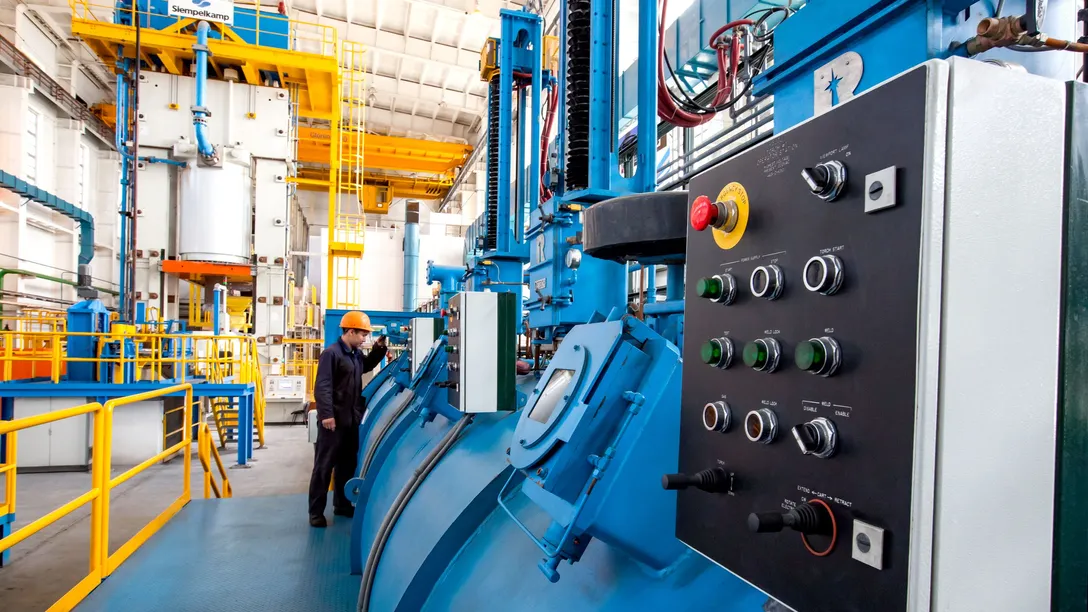

OEM Machine Automation
Printing, converting and other OEM machines use compact PLCs to coordinate sequencing, interlocks and operator commands.

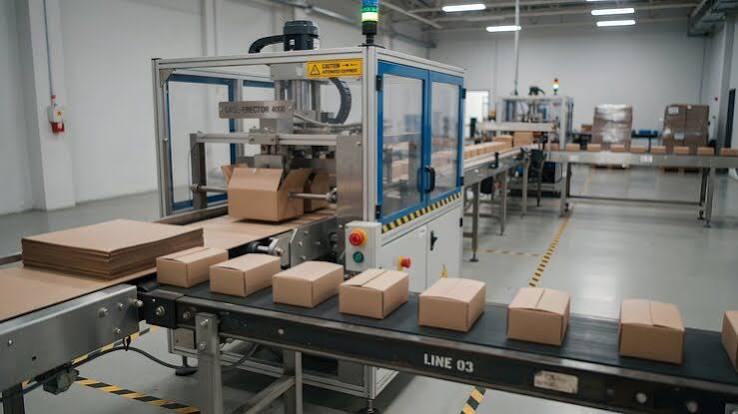

Packaging Process
On a packaging line, PLC logic can coordinate sensors, conveyors, filling or handling steps, interlocks and machine sequencing.
Industrial Machine Control
Automation systems combine PLC control, sensors and machine hardware to deliver repeatable and monitored production operations.
Key S7-200 SMART Features
Ethernet Communication
Ethernet-based communication is available on applicable CPU configurations.
Modbus
Supported configurations can communicate using Modbus TCP or Modbus RTU.
High-Speed Functions
Useful functions are available for machine-control requirements.
Expansion
Additional I/O and communication capability can be added where supported.
Micro/WIN SMART
Dedicated engineering software for programming and diagnostics.
HMI Integration
Compatible HMI systems can communicate through supported interfaces.
S7-200 SMART Communication
Communication capability allows the PLC to exchange data with HMIs, drives, controllers and other compatible automation equipment. The exact communication method depends on the CPU and configured hardware.
S7-200 SMART Communication Architecture
Communication & Operator Control in a Real Factory
Operator Panel & Machine Control
In a practical automation installation, the PLC communicates with field devices and operator interfaces while the control panel provides machine status, commands and alarm indications. The exact protocol and hardware depend on the selected S7-200 SMART CPU and system architecture.

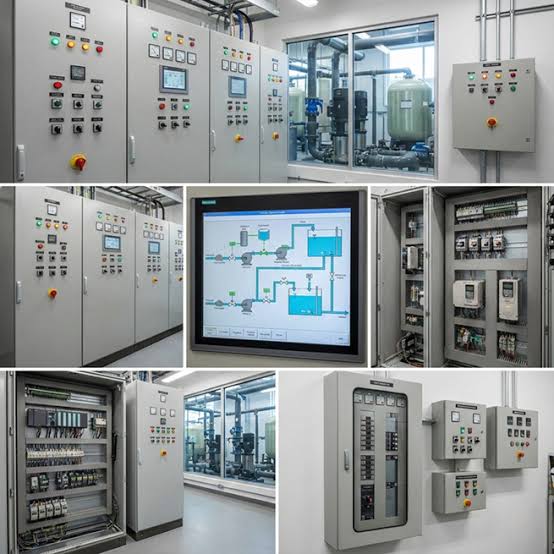

PLC Control Cabinet
A control cabinet brings PLCs, power devices, terminals and communication hardware together for organized machine control and diagnostics.
Connected Automation Line
Connected field devices, controllers and operator interfaces work together to monitor machine status and coordinate production sequences.
STEP 7-Micro/WIN SMART
STEP 7-Micro/WIN SMART is the dedicated engineering software used for S7-200 SMART programming. It provides the environment required to create PLC logic, download programs, monitor operation and perform diagnostic tasks.
Programming & Commissioning Flow
S7-200 SMART Expansion Modules
When the integrated CPU I/O is not sufficient, compatible expansion modules can be used to extend the automation system. Module selection should be based on the required signal type and system architecture.
Digital Modules
Additional digital inputs and outputs for machine signals.
Analog Modules
For compatible analog measurement and control requirements.
Communication
Additional communication capability where supported.
CPU + Expansion Module Concept
S7-200 SMART Applications
S7-200 SMART can be used in compact automation systems where the selected CPU provides the required processing, I/O and communication capability.
- Packaging
- Machine Building
- Material Handling
- Water Treatment
- Textile
- Food & Beverage
- Manufacturing
- OEM Automation
Pump & Utility Control
In utility systems, PLC logic can supervise pump start and stop sequences, level signals, valves, alarms and permissive conditions.
Automated Production
Production lines combine sensors, conveyors, actuators and control logic to maintain a repeatable machine sequence.
Machine Monitoring
Technicians can monitor equipment, inspect signals and maintain automation hardware to keep industrial processes reliable.
S7-200 vs S7-200 SMART
The original S7-200 and S7-200 SMART are different Siemens PLC families. S7-200 SMART uses its own engineering environment and hardware platform.
Original S7-200
- Legacy PLC platform
- STEP 7-Micro/WIN
- Original hardware architecture
VS
S7-200 SMART
- Dedicated SMART platform
- STEP 7-Micro/WIN SMART
- Updated communication capabilities
Need Siemens S7-200 SMART PLC?
Share your required CPU model, MLFB, quantity or application and request a current quotation.
View Siemens Products WhatsApp InquiryFrequently Asked Questions
What is Siemens S7-200 SMART PLC?
Siemens S7-200 SMART is a compact PLC designed for machine automation and basic industrial control applications. It provides integrated Ethernet communication, digital and analog I/O options, high-speed processing, motion-control capabilities and support for HMI and industrial communication.
What are the main features of Siemens S7-200 SMART PLC?
The Siemens S7-200 SMART PLC offers compact CPU options, integrated Ethernet communication, digital and analog I/O, high-speed counters, pulse outputs, PID control, motion-control functions, Modbus TCP/RTU communication and expansion modules for different automation requirements.
Does Siemens S7-200 SMART support motion control?
Yes. Selected S7-200 SMART CPUs provide motion-control functions and high-speed pulse outputs for applications such as positioning, speed control and stepper or servo-based machine automation. The available functions depend on the specific CPU model and system configuration.
Can S7-200 SMART be expanded with additional I/O modules?
Yes. Siemens S7-200 SMART supports expansion modules that can increase the available digital and analog I/O capacity. Different expansion options can be selected according to the machine or automation application's input, output and signal requirements.
What industrial applications can Siemens S7-200 SMART support?
Siemens S7-200 SMART can be used in machine automation, conveyor systems, packaging machines, material handling, water and wastewater applications, manufacturing equipment, process monitoring, building automation and other basic industrial control applications.
Is Siemens S7-200 SMART suitable for small industrial machines?
Yes. S7-200 SMART is well suited for small and medium-sized machines where compact PLC hardware, integrated communication, reliable control and flexible I/O expansion are required.
Does S7-200 SMART support PID control?
Yes. Siemens S7-200 SMART provides PID control functions that can be used for applications such as temperature, pressure, flow and level control when properly configured for the required process.
Conclusion
Siemens S7-200 SMART is a compact PLC platform for machine automation and smaller industrial control systems. Its integrated I/O, communication functions and expansion options allow the platform to be configured for different machine requirements.
For correct selection, consider the required I/O, output type, communication, expansion and exact Siemens MLFB before placing an order.
