Packaging machines run at high cycle speeds and require accurate coordination between product detection, conveying, feeding, sealing, labeling and packing. This guide explains the role of Siemens PLCs, SINAMICS VFDs, Siemens HMI panels, SCADA and TIA Portal in packaging automation.
Packaging Industry Automation Applications
Siemens automation products can be applied across different packaging-machine functions where coordinated control, operator interaction and motor control are required.
- Flow wrap & form-fill-seal: servo-synchronized film feed and sealing jaws timed to product spacing on the infeed conveyor.
- Carton erecting & case packing: carton blank forming, product loading and case sealing sequenced to line rate.
- Labeling & print-apply: registration between product position and label or print application, often tied to a photo-eye or encoder trigger.
- Palletizers & depalletizers: layer-building and stacking sequences coordinated with robot or gantry motion.
- Checkweigher integration: handshake signals with in-line checkweighers to reject out-of-tolerance packs without stopping the line.

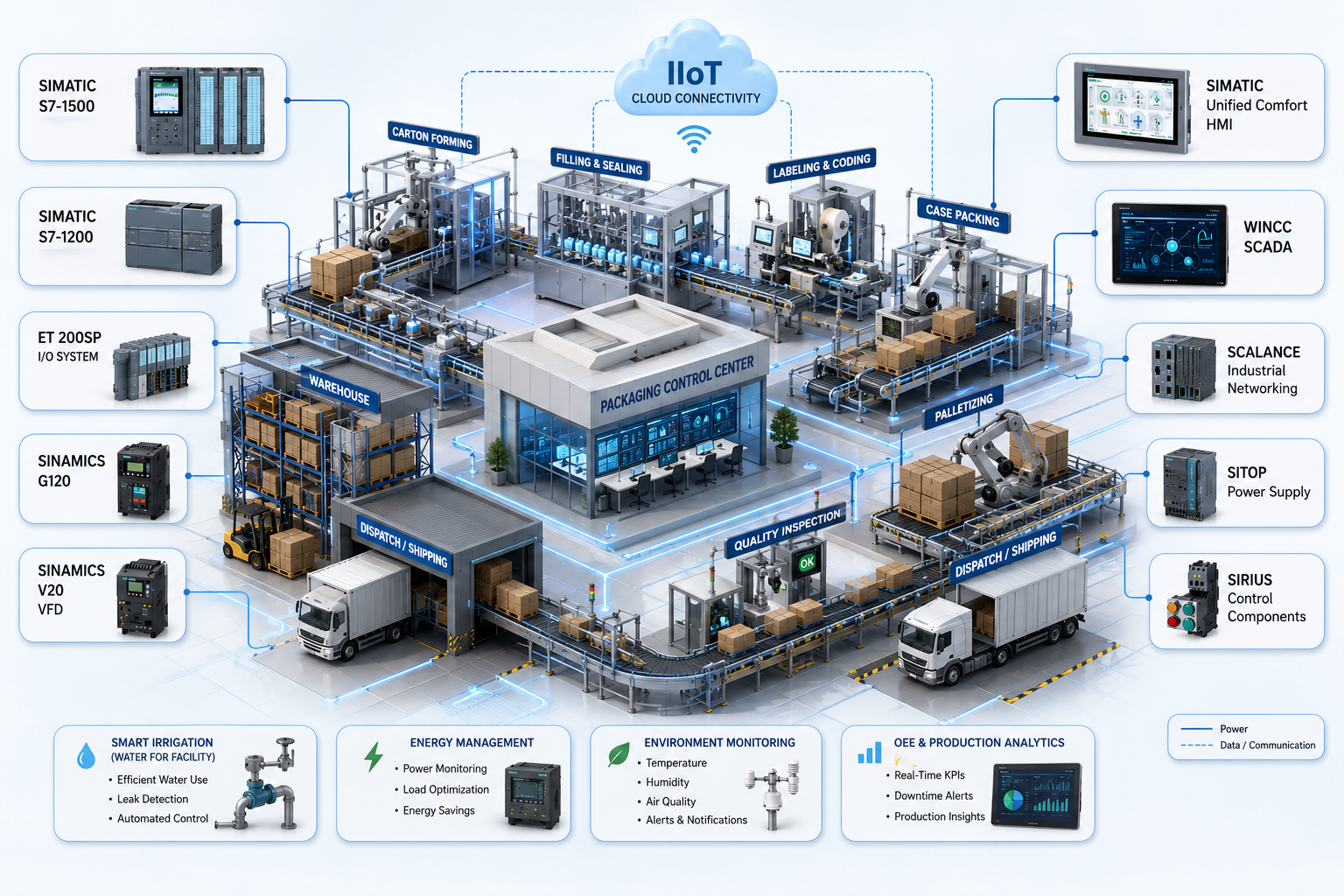

Typical Automation Architecture for a Packaging Line
- Field level: photo-eyes, encoders and servo feedback provide position and trigger information used for registration and timing.
- Control level: a SIMATIC S7-1200 G2 or S7-1200 PLC can run machine registration and sequencing logic; compact standalone machines may use S7-200 SMART.
- Drive level: SINAMICS V20 can be used for feeders and smaller auxiliary motors, while SINAMICS G120X is listed for conveyor and other motor applications.
- Local HMI: a KTP1200 Basic Panel can handle recipe selection, fault display and production counting; KTP700 can suit compact panels, while a TP1200 Comfort Panel can be used where larger displays or richer operator screens are required.
- Line-level SCADA: WinCC RT 512 can provide line-level visibility for production counts, downtime and OEE-related reporting across multiple machines.
- Engineering layer: TIA Portal provides the engineering environment for PLC, HMI and drive configuration, with Startdrive used for supported drive parametrization.
Siemens Automation Products Used in Packaging Industry
The following product list covers the Siemens automation categories and models included in this packaging-industry guide. Product pages provide additional model and MLFB information.
| Type | Product | MLFB / Model | Typical Use |
|---|---|---|---|
| PLC | Siemens SIMATIC S7-1200 G2 PLC | 6ES7212-1AG50 / 6ES7214-1AH50 / 6ES7215-1AG40 | Compact machine & skid control |
| PLC | Siemens SIMATIC S7-1200 PLC | 6ES7214-1AG40-0XB0 | Basic machine automation |
| PLC | Siemens SIMATIC S7-200 SMART PLC | 6ES7288-1SR20-0AA0 | Small standalone machines |
| VFD | Siemens SINAMICS V20 VFD | 6SL3210-5BE21-1CV0 | Small motors, feeders, auxiliary drives |
| VFD | Siemens SINAMICS G120X VFD | 6SL3200-0YC10 to 6SL3200-0YC28 | Pumps, fans and conveyors 0.75–15 kW |
| HMI | Siemens HMI KTP1200 Basic Panel | 6AV2124-0MC01-0AX0 | Machine-level operator interface |
| HMI | Siemens HMI KTP700 Basic Panel | 6AV2123-2GB03-0AX0 | Compact operator panels |
| HMI | Siemens HMI TP1200 Comfort Panel | 6AV2124-0GC01-0AX0 | Trending, recipes and larger displays |
| SCADA | Siemens SIMATIC WinCC RT 512 SCADA | 6AV6381-2BD08-0AX0 | Small plant SCADA ≤512 tags |
| Software | Siemens TIA Portal (STEP 7 + WinCC) | 6ES7822 series | PLC + HMI + drive engineering |
| Power Supply | Siemens SITOP Power Supply | 6EP1333 series | 24V DC panel power |
PLC VFD HMI SCADA
How to Select Automation Products for Packaging Machines
Per machine: S7-1200 G2 + V20 / G120X + KTP1200, engineered in TIA Portal.
Full line with reporting: add WinCC RT 512 where line-level production, downtime or OEE reporting is required.
Why PLC, VFD, HMI and SCADA Matter in Packaging Automation
Registration accuracy is important in packaging operations because product detection, conveyor movement, labeling and sealing must remain coordinated as machine speed changes. The S7-1200 G2 and S7-1200 are included in this guide for machine control and high-speed I/O applications. Compact standalone machines can also use S7-200 SMART.
On the drive side, SINAMICS V20 is listed for feeders and smaller auxiliary motors, while SINAMICS G120X is included for conveyor and other motor applications. Drive selection should be based on the actual motor, load profile, starting conditions and application requirements.
The KTP1200 Basic Panel can provide machine-level operator interaction for recipes, alarms and production information. The KTP700 provides a compact alternative, while the TP1200 Comfort Panel can be used where a larger operator interface is required. For multiple-machine visibility, WinCC RT 512 is included for SCADA-level monitoring and reporting.
Common Packaging Automation Mistakes to Avoid
- Using standard digital inputs for registration sensors: use appropriate high-speed inputs where encoder and photo-eye signals require high-speed processing.
- Centralizing every machine under one controller: machine-level controllers with coordinated handshakes can help isolate machine faults and simplify independent recovery.
- Ignoring future reporting requirements: if OEE, downtime or production reporting may be required later, plan the relevant network, data and SCADA interfaces during machine design.
- Underrating the VFD for startup conditions: size the drive using the actual motor load and starting requirements rather than steady-state running load alone.
Packaging Industry Automation FAQs
Which PLC can be used for packaging machines?
This guide lists Siemens S7-1200 G2 and S7-1200 PLCs for packaging-machine control, with S7-200 SMART included for smaller standalone machines. Final selection depends on I/O, speed, machine functions and application requirements.
Which VFD can be used for packaging conveyors and feeders?
The product list includes SINAMICS V20 for smaller motors, feeders and auxiliary drives, and SINAMICS G120X for conveyor and other motor applications. Drive sizing should be checked against the actual motor and load.
Which HMI can be used on a packaging machine?
KTP1200 Basic is listed for machine-level operator functions such as recipe selection, alarms and production counting. KTP700 is a compact option, while TP1200 Comfort is listed for larger operator interfaces and richer screen requirements.
Why do packaging machines need high-speed PLC I/O?
Flow wrappers, labelers and cartoners can use encoder and photo-eye signals for product registration and timing. Appropriate high-speed inputs help the controller process these signals for time-sensitive machine functions.
Should a packaging line use one PLC or separate PLCs?
A packaging line may use machine-level PLCs for individual machines such as fillers, labelers, cartoners or palletizers, with handshaking or higher-level monitoring between machines. The final architecture depends on the line design and control requirements.
Do small packaging machines need SCADA?
A standalone OEM machine may operate with a local HMI. SCADA becomes relevant when the requirement includes monitoring or reporting across multiple machines, such as production counts, downtime or OEE-related information.
